SpaceX performed an engine firing test on the newly-developed Raptor 3 Starship/Super Heavy rocket engine.
SpaceX CEO Elon Musk and President Gwynne Shotwell shared the pictures of the engine firing test of Raptor 3 on X(Twitter). Unfortunately, no videos of the test were posted by any official account of the company.
The simple design of the Raptor 3 engine created confusion even for people who work in the rocket engine industry. The clutter-free look of the engine gave the impression that SpaceX has probably shown an unfinished Raptor 3.
The CEO of United Launch Alliance (ULA) Tory Bruno responded to the Raptor 3 photos by saying it’s a “partially assembled” engine.
Tory wrote on X (Twitter):
They have done an excellent job making the assembly simpler and more producible. So, there is no need to exaggerate this by showing a partially assembled engine without controllers, fluid management, or TVC systems, then comparing it to fully assembled engines that do.
Tory admired the overall outcome of the Raptor 3 engine development, he threw light criticism at SpaceX as well. Although he’s involved in rocket engine development at ULA, he thought the Raptor 3 engine shown in the official pictures was partially assembled. To which, SpaceX President Gwynne Shotwell replied with the following picture of the Raptor 3 firing test with a caption:
Works pretty good for a “partially assembled” engine 🙂
Gwynne Shotwel / SpaceX via X (Twitter).
Related: Raptor 3 Starship engine is lighter, less complicated but more powerful and reusable

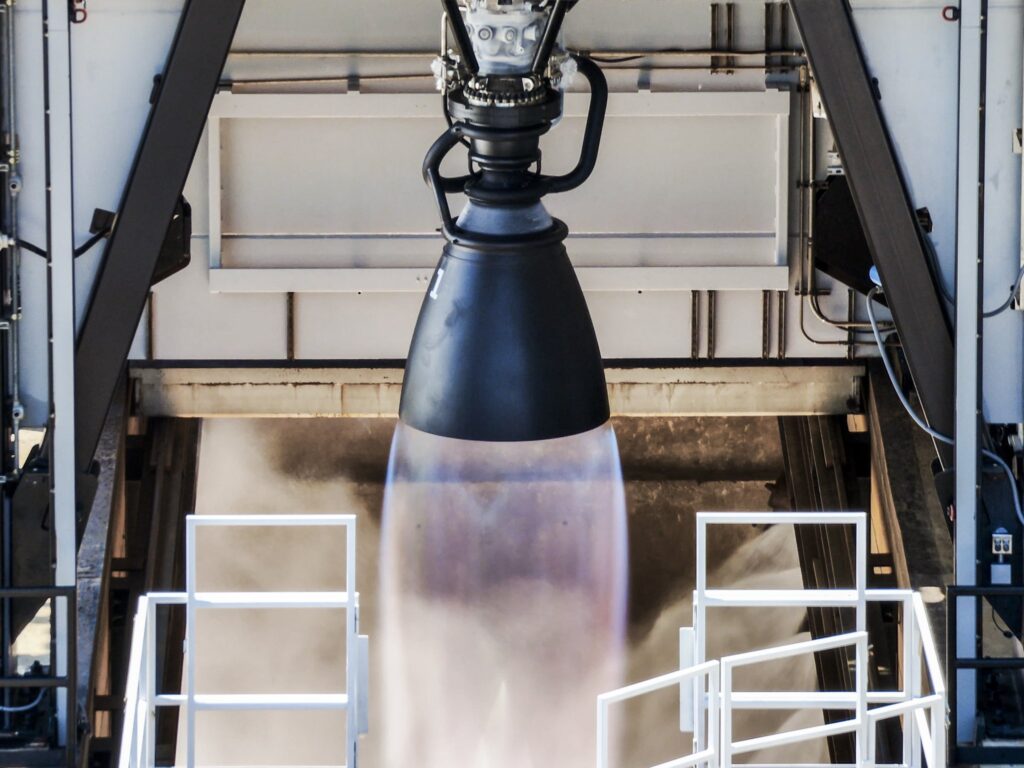

Raptor 3 SN1 (Serial Number 1) engine was fired for the first time at the SpaceX Rocket Factory in McGregor, Texas yesterday. We can see in the picture above that the Raptor V3 engine is installed on an engine test stand for firing. The flames of the 280tf (ton-force) of thrust are also visible in the photo.
According to reports by the NASASpaceFlight.com ground observation team, the Raptor 3 SN1 engine was fired for a duration of 30 seconds.
The CEO of SpaceX added more information on Raptor 3 in response to SpaceX’s official post about the rocket engine. He revealed that Raptor 3 with further improvements will be able to achieve a thrust of more than 300tf (ton-force). With 33 Raptor engines installed on a Super Heavey rocket booster, this will result in 10,000 tons of downward thrust at liftoff.
Important to note that the induced mass (mass required by a given engine design that is not the engine itself) of Raptor 3, while far better than Raptor 2, still has a lot of room for improvement.
Thrust will exceed 300 tons with Raptor 3.x (thrust/mass>200), enabling 10,000 tons of thrust at liftoff and there might be up to 5 sec of Isp gain over time.
Getting close to the limit of known physics.
Elon Musk via X (Twitter).
Raptor 3 engine does not need a heat shield
Interestingly, Elon Musk revealed some details of the Raptor V3 engine in a Starbase documentary recorded around 1 month ago. Everyday Astronaut/Tim Dodd asked Elon Musk some questions about the Raptor 3 engine development and Musk answered some of them but didn’t completely reveal what was coming up.
According to Musk, although the Raptor 3 engine looks simple from the outside, it’s complicated on the inside. The reason for its internal complexity is the absence of a heat shield. To manage heat in the absence of a heat shield, the Raptor 3 engine has integrated cooling circuits in all of its parts.
The next-gen Raptor engine needs no heat shield. And because it’s exposed, it has to have cooling. So, there’s integral cooling circuits throughout all the parts. So, it looks very simple on the outside but it’s complicated on the inside.
Elon Musk via Everyday Astronaut / YouTube (watch below).
Explaining the above image of the Raptor 3 engine firing test, Elon Musk wrote:
The parts that appear white are actually black, but covered in ice.
Raptor 3 does not have a heat shield, but it has integrated cooling circuits all across the parts. As more information surfaced after the test, the ice-cooled parts of the Raptor 3 engine seen in the above picture are cooled with cold methane and hot methane is used to fire the engine.
SpaceX uses methane as fuel and liquid oxygen (temperature of –297°F or –183°C) as an oxidizer called MethaLOX. Cold methane runs through the upper parts of the Raptor 3 engine which eliminates the need for a heat shield between the upper and lower parts of the rocket engine.
